SEAFLO 42 Series 24V Diaphragm Pump 3GPM Large Flow Self Priming Water Supply Pressure System Tank for RV Boat Yacht
SEAFLO 42 Series 24V Diaphragm Pump 3GPM Large Flow Self Priming Water Supply Pressure System Tank for RV Boat Yacht
Reliable Performance
Featuring a rated current of 5-10A, this pump guarantees reliable performance under various conditions.
Compact Size
Its compact size makes it easy to install and space-saving, ideal for boats and RVs with limited space.
High Flow Rate
With a flow rate of <500GPH, this SEAFLO 42 Series pump ensures rapid water supply for your RV, boat, or yacht.
Low Voltage Operation
Operating at 24V, this pump is ideal for marine environments where low voltage systems are commonly used.
Self-Priming Feature
The self-priming feature of this pump allows for easy operation without the need for manual priming, enhancing convenience.

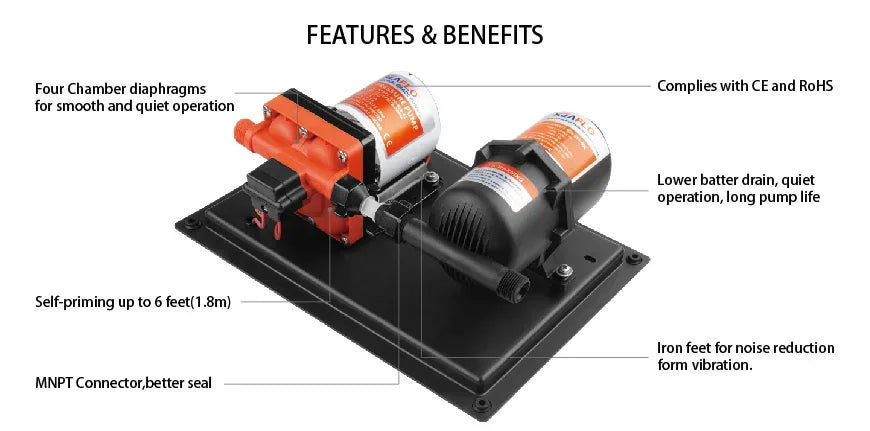

MORE FEATURES & BENEFITS
• Powerful 3.0 gallons/11.3 litres per minute of flow
• Ultra quiet with constant and steady flow
• Superior self-priming capabilities
• Powerful enough to supply up to 3 fixtures
• Built-in adjustable pressure switch
• Easy pre-assembled installation
• Heavy-duty, corrosion resistant motor
• Capable of being run dry without damage
• Can be fitted to new or existing systems
STANDARD PUMP CONFIGURATIONS
Model：GM-GP-BP1115
Tank Volume：0.75 L
Voltage：24V
Open Flow(GPM/LPM)：3.0 GPM/ 11.3LPM
Pressure On(PSI/BAR)：45 PSI/ 3.1BAR
Pressure Off(PSI/BAR)：55 PSI/ 3.8BAR
Max Draw：4.0A

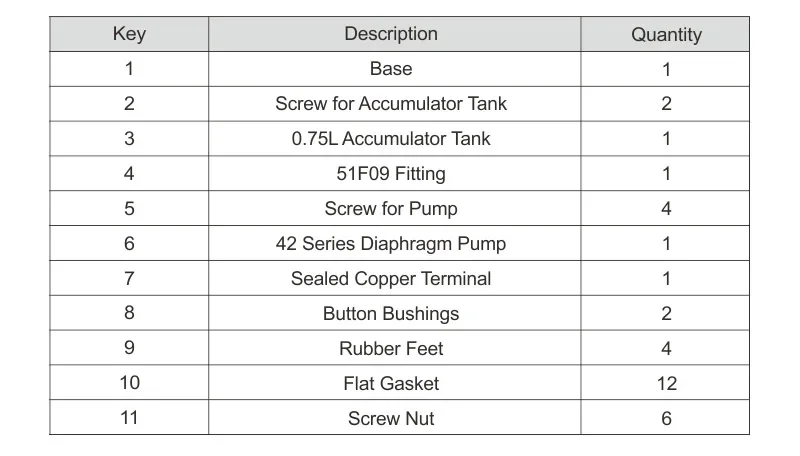

Package Includes:
1 Piece Diaphragm Pump System
Product Overview

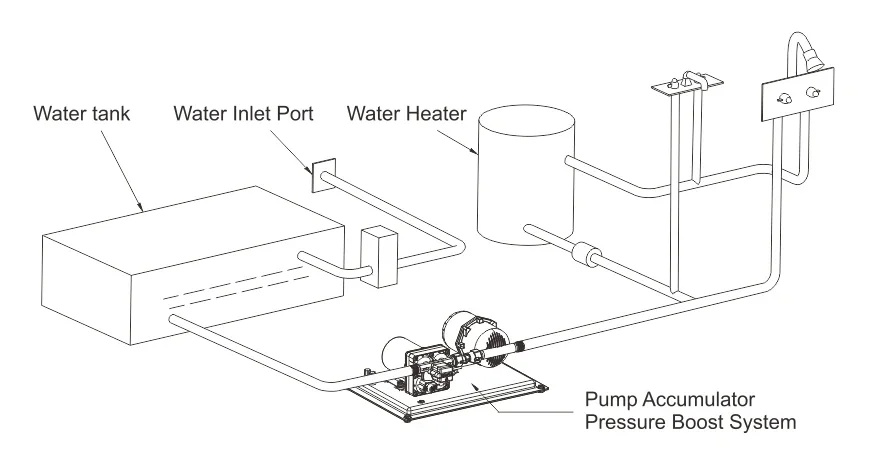

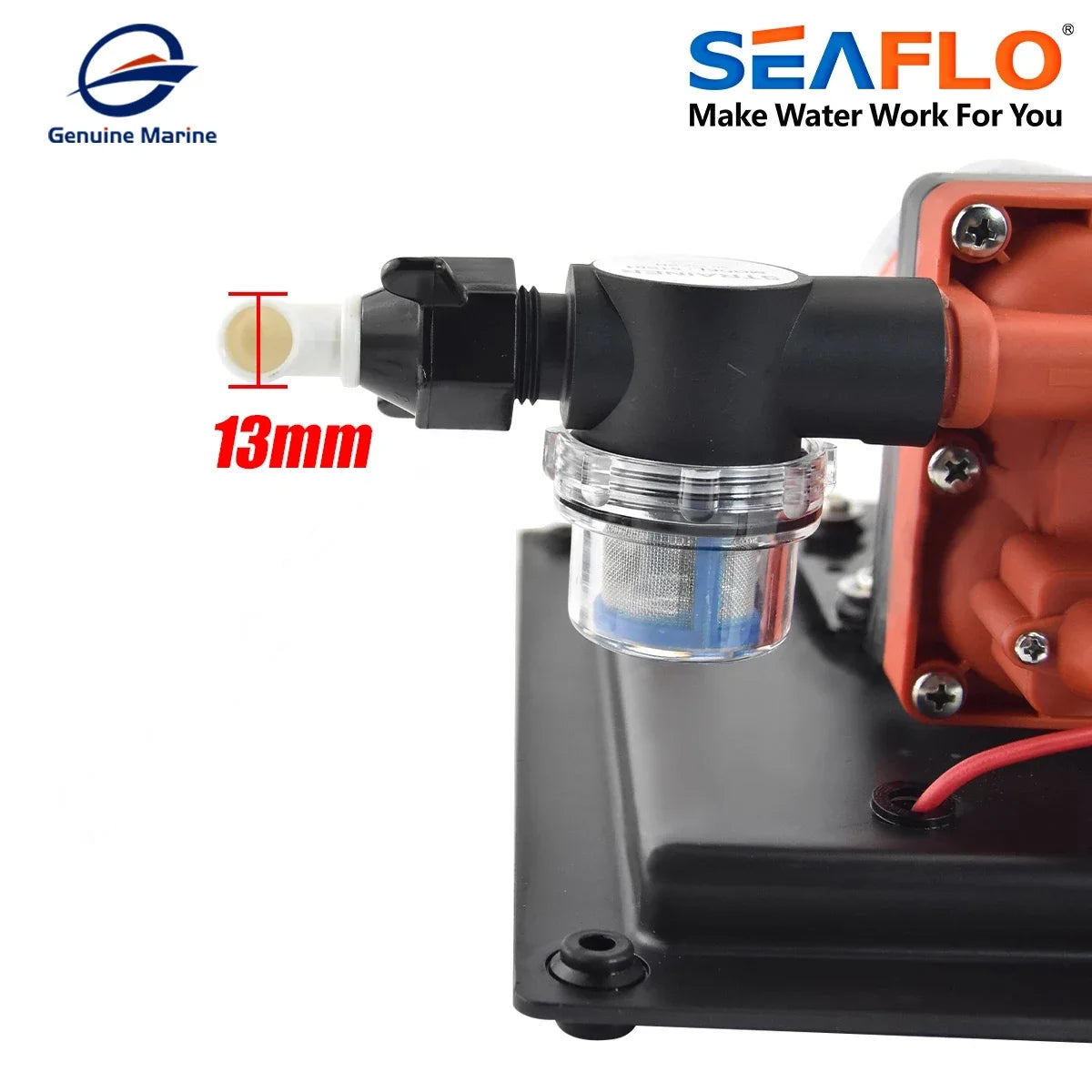

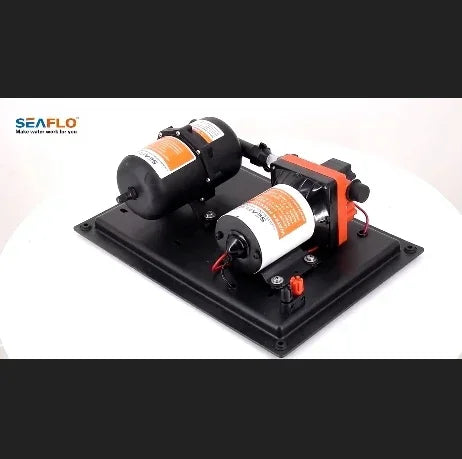

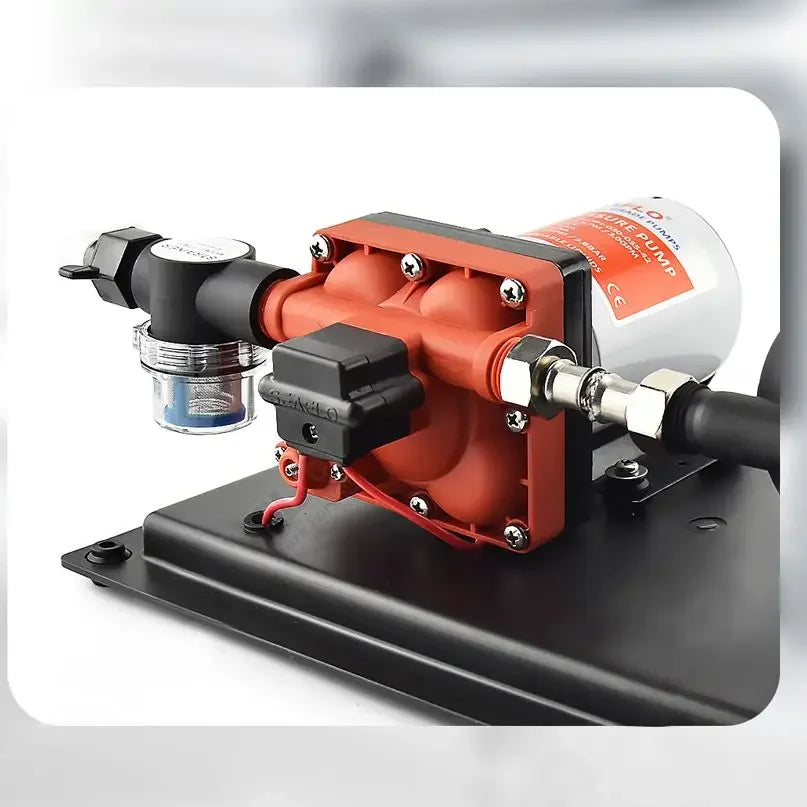

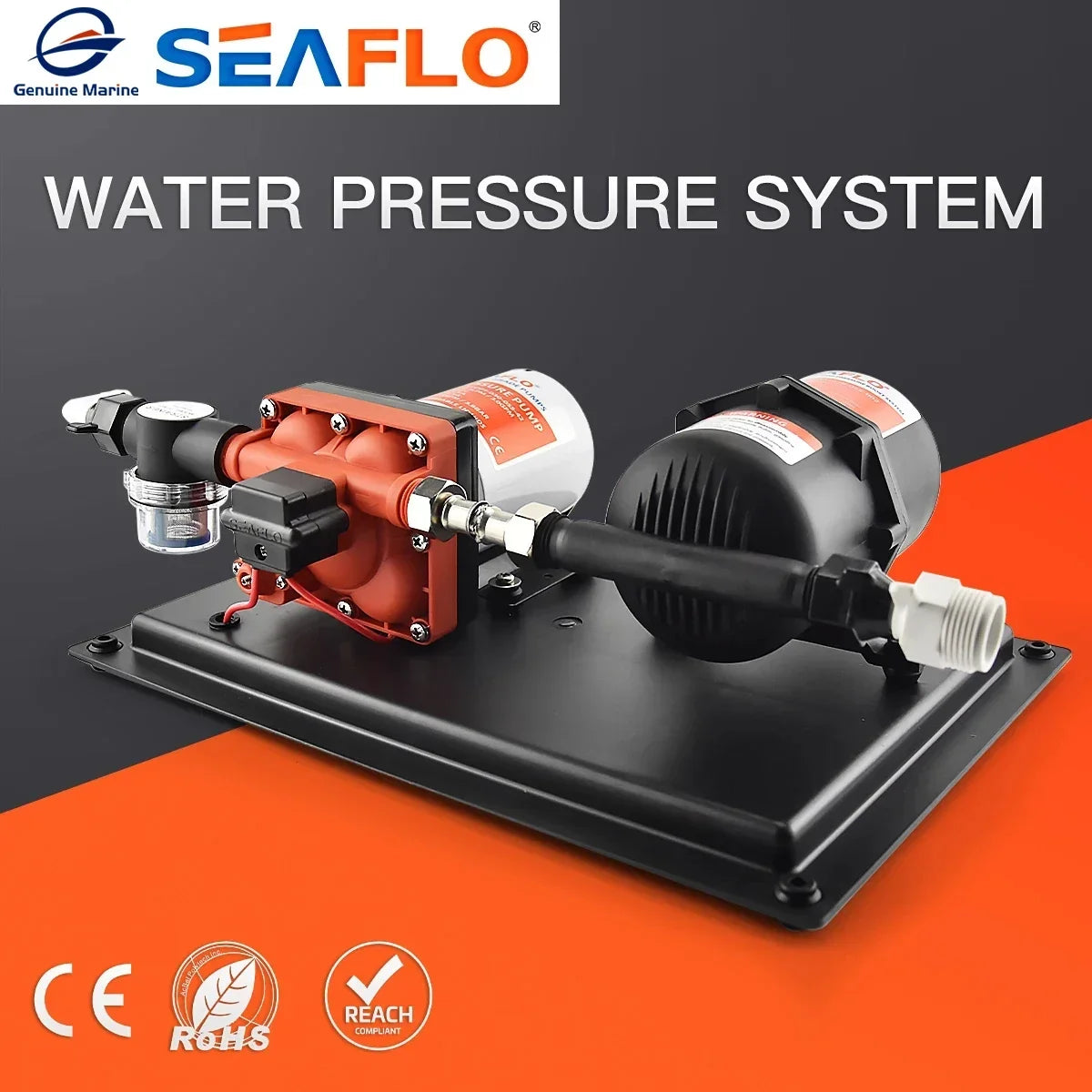

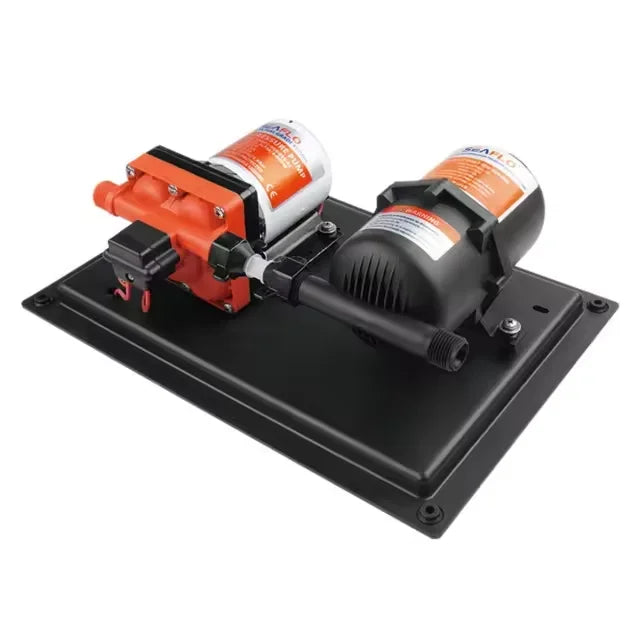

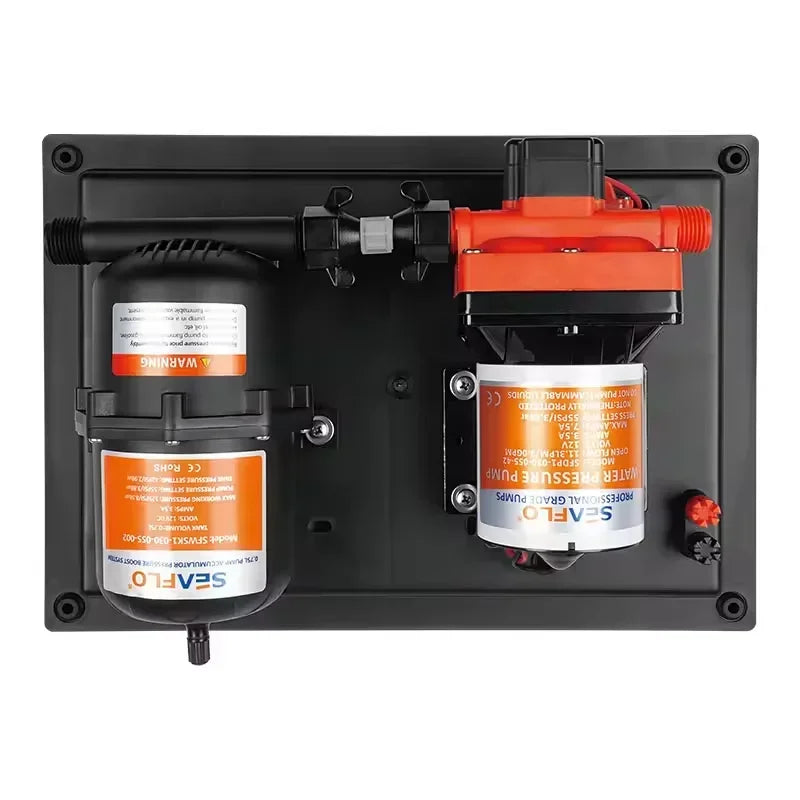

A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 4 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a Plate mounted board. Serves 3 or more 1/2" (13mm) outlets.
